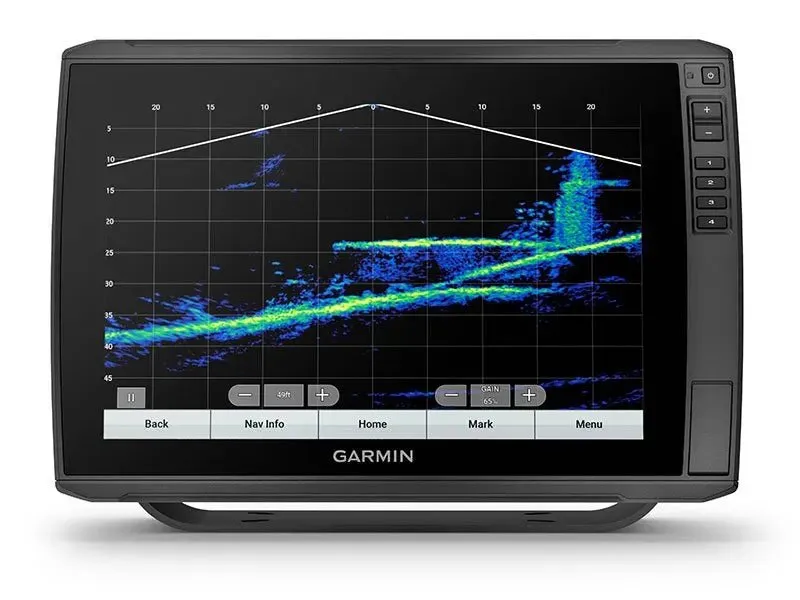

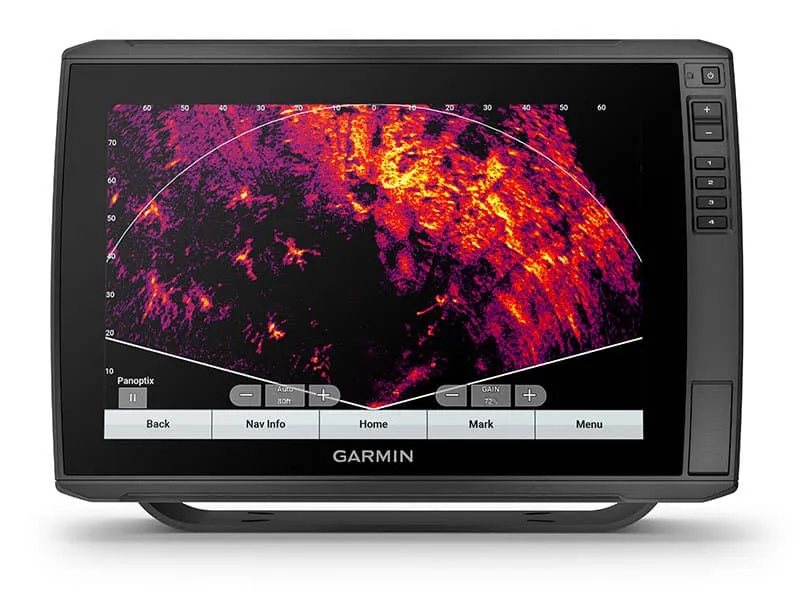

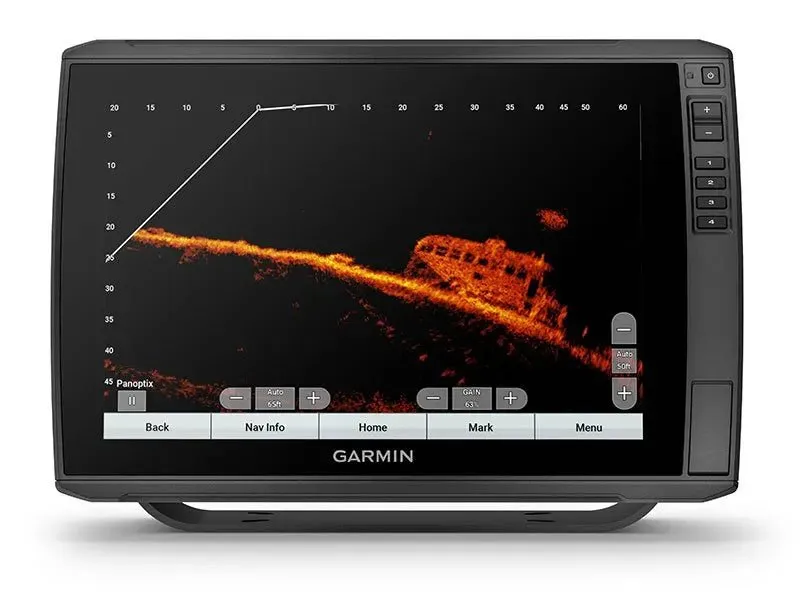

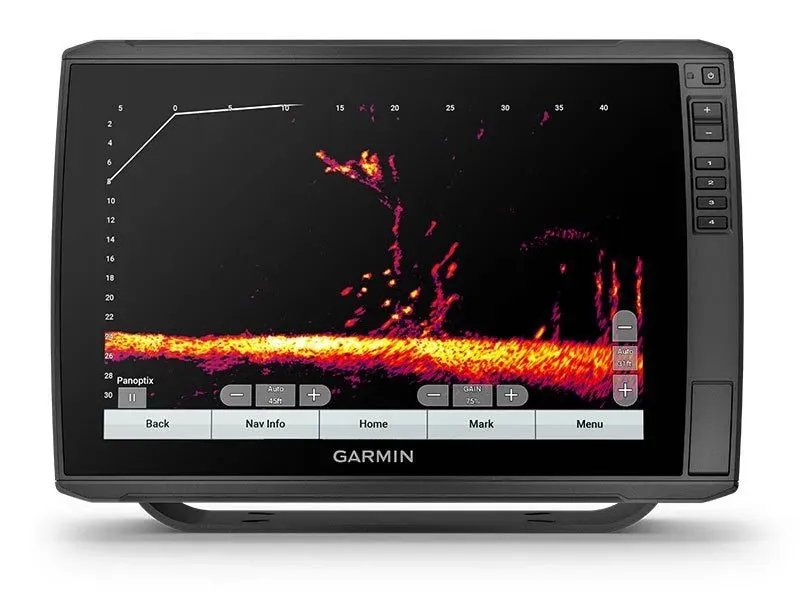

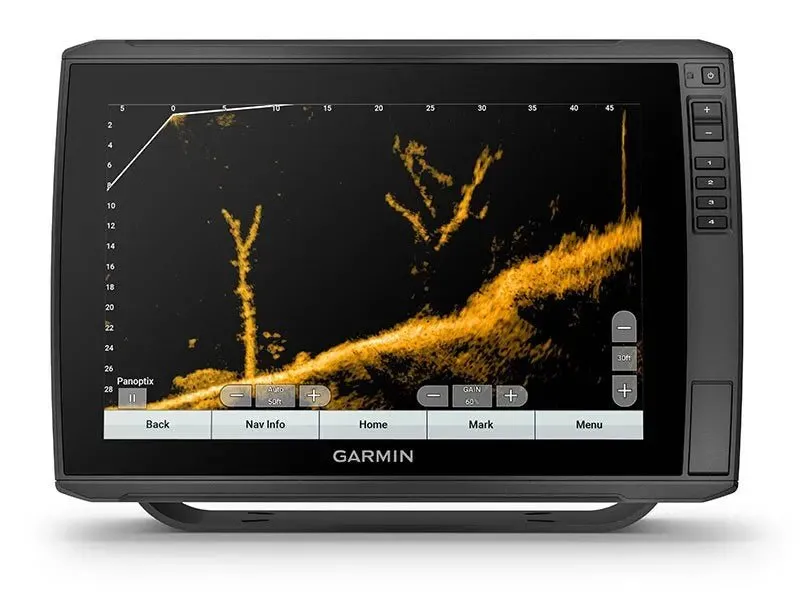

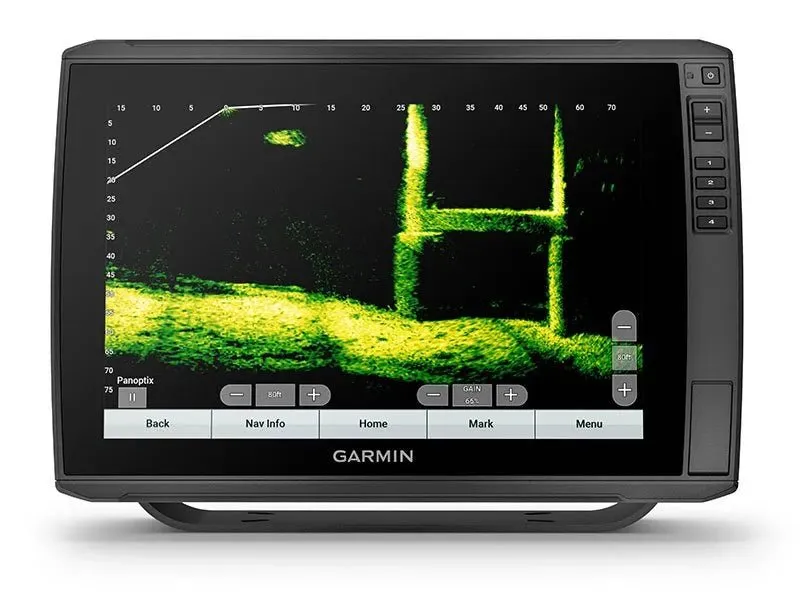

The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, cleaner images and better target separation.
FEATURES:
- Real-time sonar ensures that your live images are as accurate as possible.
- See exactly what you need with reduced noise and fewer sonar artifacts that impede your picture of fish and structure
- A built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.
- Choose from seven vivid color options — including Aqua, Caribbean, Lava and more — to see fish and structure in maximum contrast and clarity.
| DIMENSION |

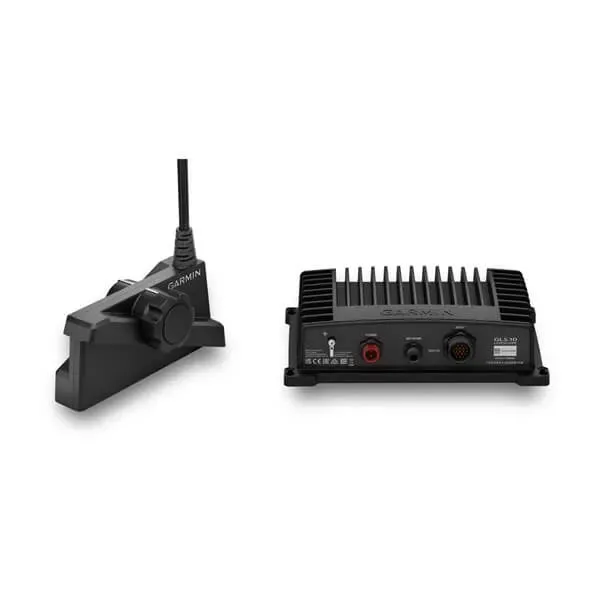

GLS 10 sonar black box: 9.7” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm); LVS34 transducer: 6.4” x 3.1” x 1.9” (16.2 x 7.8 x 4.8 cm) |
|---|---|
| WEIGHT |
GLS 10 sonar black box: 4.3 lbs (2.0 kg) |
| WATERPROOF | IPX7 |
| TRANSDUCER BEAMWIDTH | 20° x 135° |
| TRANSDUCER CABLE LENGTH | 20 ft |
| TRANSDUCER NUMBER OF PINS | 21 |
| TEMPERATURE RANGE |
GLS 10 Black Box: Operating: -15 C to 70 C Panoptix LiveScope LVS34 Transducer: Operating: 0 C to 40 C |
